How to Bend an Exhaust Pipe? Muffler Pipe Bender

I. Introduction

Bending the exhaust pipe is a common process in automobile modification, maintenance, and pipe processing. As a professional pipe bending equipment, the muffler pipe bending machine directly determines the bending accuracy, pipe integrity, and subsequent use effect. I will detail the complete process, precautions, and core skills of bending the exhaust pipe with the muffler pipe bender to help you learn how to operate the machine.



II. Core Cognition: Understand the Muffler Pipe Bender

2.1 The Role of the Muffler Pipe Bender

The muffler pipe bender can be used for the bending of exhaust pipes and muffler pipes. Different from ordinary pipe benders, it emphasizes its characteristics of being suitable for exhaust pipe materials (such as stainless steel pipes, iron pipes, etc.) and highlights the equipment's role in ensuring bending quality.

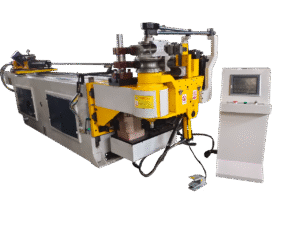

2.2 The Core Structure of the Muffler Pipe Bender

Its main mold parts include bending die, clamping die, mandrel, etc. The bending die is used for pipe bending, and the clamping die is used to clamp the pipe during bending to ensure that there is no sliding which would lead to bending failure. First, I need to know the exhaust pipe specifications (diameter, thickness).then I can recommend a suitable muffler pipe bending machine model . A good machine is very important for bending high-quality products. If the pipe size exceeds the machine's bearing capacity, the entire operation process cannot be completed.

2.3 Inspection and Debugging of the Muffler Pipe Bender

Inspection is required before bending starts. such as whether the bending die is worn, whether the clamping pressure is sufficient, and whether the motor is running clockwise. manually operate the machine to test whether the bending angle meets the standard, calibrate the bending angle, and ensure that the muffler pipe bender is in the best working condition.

2.4 Set Bending Parameters (Angle, Speed)

According to the use requirements of the exhaust pipe, set the bending angle of the muffler pipe bending machine. This needs to be set according to the actual bending angle of the product, as well as the length of the straight section between each bend, bending speed, and the rotation angle of the pipe. After saving these settings on the machine, you can start the operation. To avoid pipe cracking caused by excessive speed during bending.we usually do not use a high running speed during testing.

2.5 Start the Muffler Pipe Bender and Complete the Bending Operation

After all operations are completed, we can start normal production. After starting production, we should first perform a test bending of the product to ensure that the pipes bent later are not unqualified. During production, operate at a constant speed, observe the pipe status, and take protective measures to avoid operational errors.

III. Follow-up Processing: Inspection and Correction

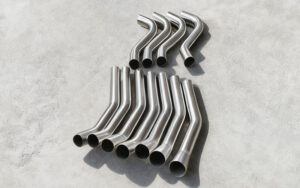

After bending is completed, turn off the muffler pipe bending machine and take out the exhaust pipe. Usually, there are fixed detection tools to check whether the product is qualified. These tools can check the bending angle, whether the pipe surface is deformed, whether the size is sufficient, and other issues. If the size is insufficient, you need to increase or decrease the data on the operation.
